High-performance and flexible
The special design of the MDL–T gives the LED bar a unique beam characteristic and therefore allows the emission of a second light beam. This means that the entire shelf and the display panels underneath are evenly illuminated at the same brightness right down to the cabinet base.

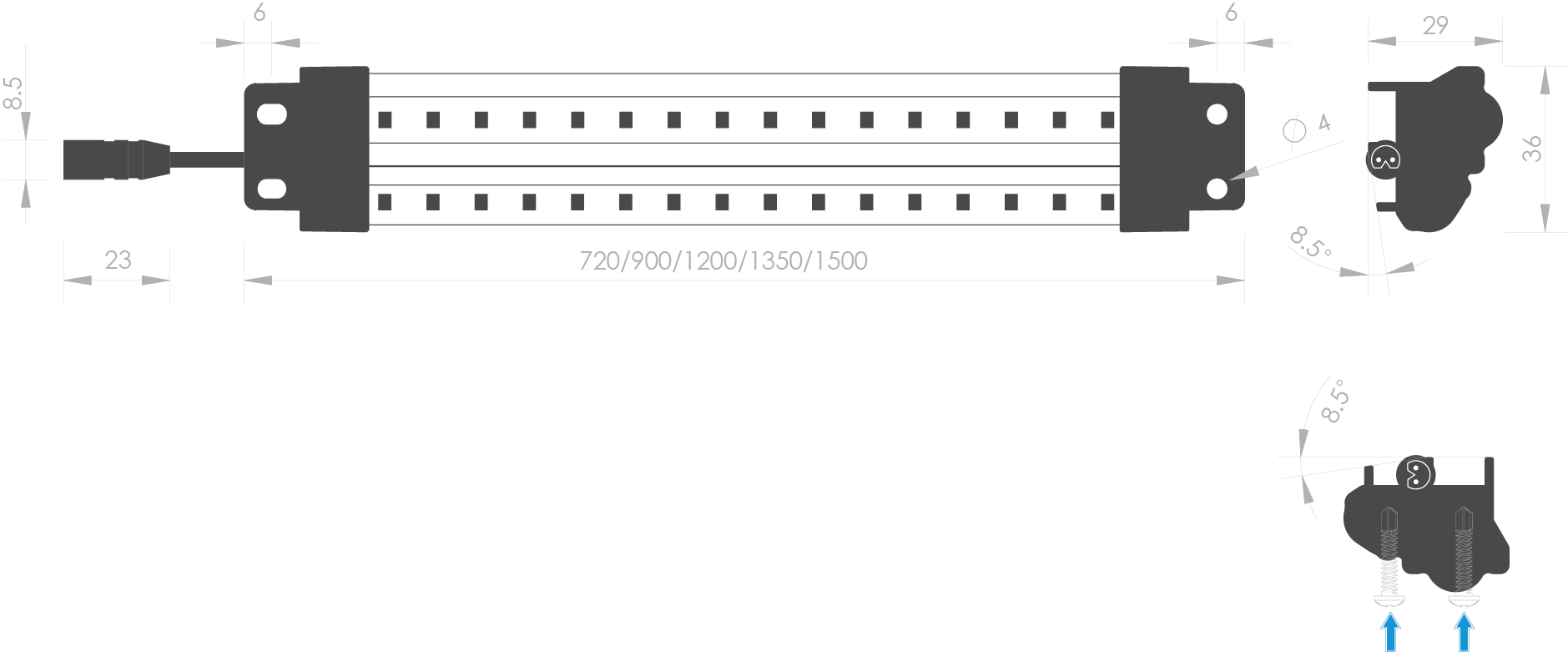

Installation Size
It can be easily fitted to the end caps using screws. In order to make best use of the standard canopy lighting design, the RFM-T offers two different hole patterns for customised mounting in the refrigeration cabinet.
RFM-T Series
|
Description
|
Article no.
|
Length
|
Colour temperature
|
Luminous flux
|
Power
|
CRI
|
|
RFM-T L720
|
CNP0720C30A
|
720 mm
|
3.000 K / ww
|
920 lm
|
11.5 W
|
> 80
|
|
RFM-T L720
|
CNP0720C40A
|
720 mm
|
4.000 K / nw
|
966 lm
|
11.5 W
|
> 80
|
|
RFM-T L720
|
CNP0720C65A
|
720 mm
|
6.500 K / cw
|
966 lm
|
11.5 W
|
> 80
|
|
RFM-T L720
|
CNP0720CFRA
|
720 mm
|
Fresh meat
|
855 lm
|
11.5 W
|
> 80
|
|
RFM-T L900
|
CNP0900C30A
|
900 mm
|
3.000 K / ww
|
1.200 lm
|
14.5 W
|
> 80
|
|
RFM-T L900
|
CNP0900C40A
|
900 mm
|
4.000 K / nw
|
1.260 lm
|
14.5 W
|
> 80
|
|
RFM-T L900
|
CNP0900C65A
|
900 mm
|
6.500 K / cw
|
1.260 lm
|
14.5 W
|
> 80
|
|
RFM-T L900
|
CNP0900CFRA
|
900 mm
|
Fresh meat
|
1.155 lm
|
14.5 W
|
> 80
|
|
RFM-T L1200
|
CNP1200C30A
|
1.200 mm
|
3.000 K / ww
|
1.600 lm
|
20 W
|
> 80
|
|
RFM-T L1200
|
CNP1200C40A
|
1.200 mm
|
4.000 K / nw
|
1.680 lm
|
20 W
|
> 80
|
|
RFM-T L1200
|
CNP1200C65A
|
1.200 mm
|
6.500 K / cw
|
1.680 lm
|
20 W
|
> 80
|
|
RFM-T L1200
|
CNP1200CFRA
|
1.200 mm
|
Fresh meat
|
1.540 lm
|
20 W
|
> 80
|
|
RFM-T L1350
|
CNP1350C30A
|
1.350 mm
|
3.000 K / ww
|
1.840 lm
|
23 W
|
> 80
|
|
RFM-T L1350
|
CNP1350C40A
|
1.350 mm
|
4.000 K / nw
|
1.932 lm
|
23 W
|
> 80
|
|
RFM-T L1350
|
CNP1350C65A
|
1.350 mm
|
6.500 K / cw
|
1.932 lm
|
23 W
|
> 80
|
|
RFM-T L1350
|
CNP1350CFRA
|
1.350 mm
|
Fresh meat
|
1.771 lm
|
23 W
|
> 80
|
|
RFM-T L1500
|
CNP1500C30A
|
1.500 mm
|
3.000 K / ww
|
2.240 lm
|
28.5 W
|
> 80
|
|
RFM-T L1500
|
CNP1500C40A
|
1.500 mm
|
4.000 K / nw
|
2.352 lm
|
28.5 W
|
> 80
|
|
RFM-T L1500
|
CNP1500C65A
|
1.500 mm
|
6.500 K / cw
|
2.352 lm
|
28.5 W
|
> 80
|
|
RFM-T L1500
|
CNP1500CFRA
|
1.500 mm
|
Fresh meat
|
2.195 lm
|
28.5 W
|
> 80
|
