Authentic colour worlds
Differently predominant colour spectra within the product group meat, fish and cheese as well as packaged food were authenti- cally highlighted without being unnatural. Outstanding internal heat management of the RFD, combined with exceptional colour brilliance and luminousity, makes it perfect for the reliable, long- term use.

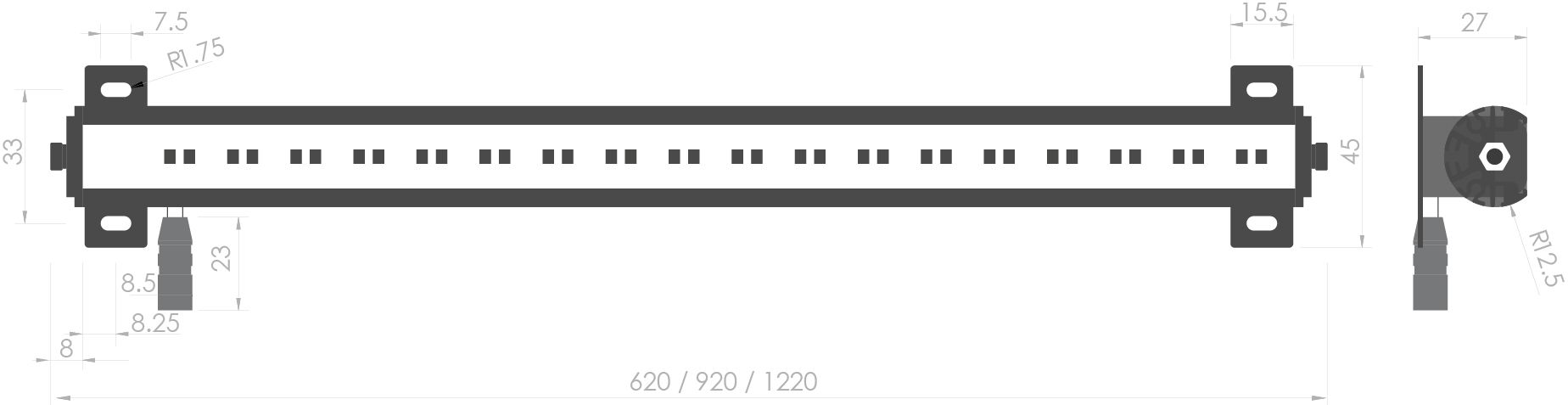

Installation Size
Using mounting clips, the RFD is flexibly fitted centred on the top section of the counter, and to the underside of the cabinet of combination freezers.

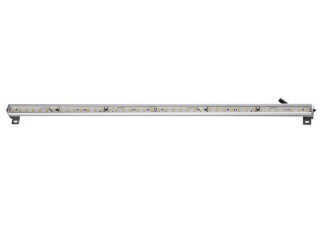

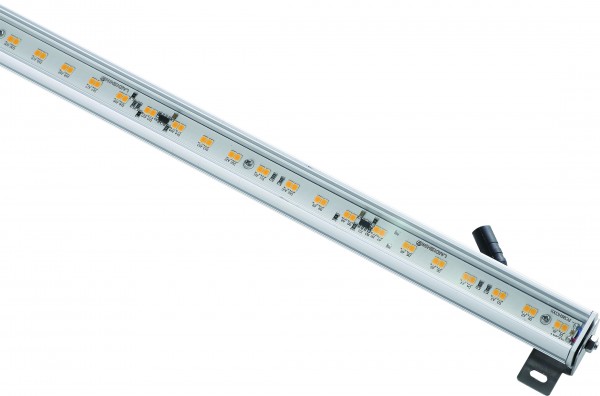

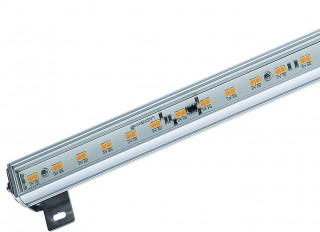

RFD Series
Article description
|
Article no.
|
Length
|
Colour temperature
|
Luminous flux
|
Power
|
CRI
|
RFD L600
|
RFD0620H30A
|
620 mm
|
3.000 K / ww
|
1127 lm
|
11.5 W
|
> 85
|
RFD L600
|
RFD0620H40A
|
620 mm
|
4.000 K / nw
|
1265 lm
|
11.5W
|
> 85
|
RFD L600
|
RFD0620H65A
|
620 mm
|
6.500 K / cw
|
1265 lm
|
11.5 W
|
> 85
|
RFD L600
|
RFD0620HFRA
|
620 mm
|
fresh meat
|
874 lm
|
11.5 W
|
> 85
|
RFD L600
|
RFD0620HCPA
|
620 mm
|
cheese & pastry
|
1120 lm
|
11.5 W
|
> 85
|
RFD L900
|
RFD0920H30A
|
920 mm
|
3.000 K / ww
|
1660 lm
|
17 W
|
> 85
|
RFD L900
|
RFD0920H40A
|
920 mm
|
4.000 K / nw
|
1870 lm
|
17 W
|
> 85
|
RFD L900
|
RFD0920H65A
|
920 mm
|
6.500 K / cw
|
1870 lm
|
17 W
|
> 85
|
RFD L900
|
RFD0920HFRA
|
920 mm
|
fresh meat
|
1290 lm
|
17 W
|
> 85
|
RRD L900
|
RFD0920HCPA
|
920 mm
|
cheese & pasty
|
1650 lm
|
17 W
|
> 85
|
RFD L1200
|
RFD1220H30A
|
1.220 mm
|
3.000 K / ww
|
2205 lm
|
22.5 W
|
> 85
|
RFD L1200
|
RFD1220H40A
|
1.220 mm
|
4.000 K / nw
|
2475 lm
|
22.5 W
|
> 85
|
RFD L1200
|
RFD1220H65A
|
1.220 mm
|
6.500 K / nw
|
2475 lm
|
22.5 W
|
> 85
|
RRD L1200
|
RFD1220HFRA
|
1.220 mm
|
fresh meat
|
1710 lm
|
22.5 W
|
> 85
|
RFD L1200
|
RFD1220HCPA
|
1.220 mm
|
cheese & pasty
|
2180 lm
|
22.5 W
|
> 85
|
